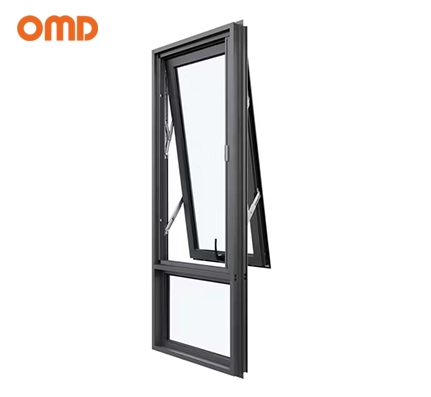

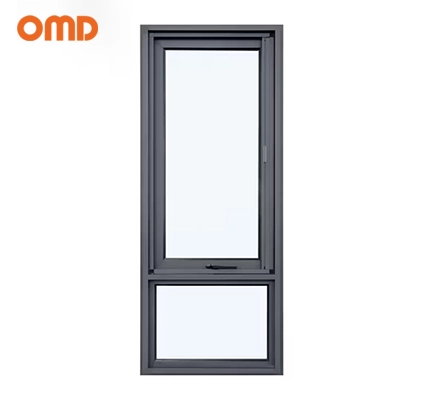

Awning Windows

  •  Brand Name: OMD
  •  Opening Style:  Awning
  •  Thermal Insulation:  U≤ 0.5W/㎡K
  •  Acoustic Performance:  ≤ 45 DB
  •  Air Tightness:  ≤ 0.4m³(㎡h)
  •  Wind Load Resistance:  ≥ 2.8 KPa
  •  Water Penetration:  ≥ 900Pa
  •  Standard:  AS2047, CE,Others: Custom certifications available upon request
  •  Warranty: 10 Years
  •  Application: Residential, Commercial
  •  Performance: Thermal Broken, Soundproof

Technical Specs

awning-window-scaled-300x300

  • Hi-Tech profile and reinforced material
  • Reinforced glass fiber thermal insulation bar with high loading capacity
  • Pressure extrusion for higher strength level
  • Coex wire seal to protect against moisture
  • Multi-point hardware lock system for weather sealing and burglarproofing
  • Truss structure design for increased structural strength
  • Tilt-turn system achieves the AAMA rating of CW-PG60
  • Corner locking key ensures the smooth surface joint and improves corner stability
  • Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue

Color & Coating optionsblank

  • OMD Commen Color: Frosted Black, White Powder Coating
  • Silver grey powder coating, Silver anodising with INTERPON powder
  • Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • Monument(Matt), Clear, Residential Bronze
  • Cedar, Mahogany, Honey Gum, Snow Gum
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

Glass Optionsblank

  • Single Glass(5mm, 6mm, 8mm, 10mm….)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

Screen Options

blank

  • Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • All fly screens are supplier with fibreglass mesh as standard
  • Midrail and handle hights depend on customer requirements
  • Fixed Screen is easy installation and removal
  • In-swing Screen can help you enjoy nature and keep the bugs out
  • Rolling Screen let you enjoy an unobstructed view when rulled up
  • The mesh screen is color coated together with the window to match perfectly.
  • Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

Grille Options

  • Minimalist symmetrical grille: horizontal and vertical geometric divisions, suitable for modern and industrial style buildings.
  • Chinese carved grille: traditional window lattice, diamond/arc carvings, suitable for courtyards and retro villas.
  • Invisible narrow-frame grille: 5-10mm ultra-thin aluminum frame, weakened presence, with panoramic floor-to-ceiling windows.
  • Anti-theft protection grille: thickened aluminum (1.5-2.0mm) + anti-theft lock point, dedicated to low-rise residential buildings/shops.
  • Adjustable ventilation grille: Rotatable blade design, flexible control of airflow (recommended for bathroom/sunroom).
  • Energy-saving thermal break grille: thermal break aluminum + insulating glass, heat insulation and noise reduction, in line with energy-saving building standards.
  • Material: anodized (champagne gold/titanium air gray), fluorocarbon spraying (200+ colors available).
  • Technology: 3D stamping texture, CNC precision cutting (error ≤ 0.2mm).

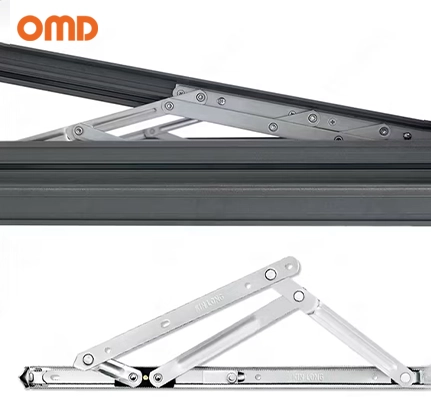

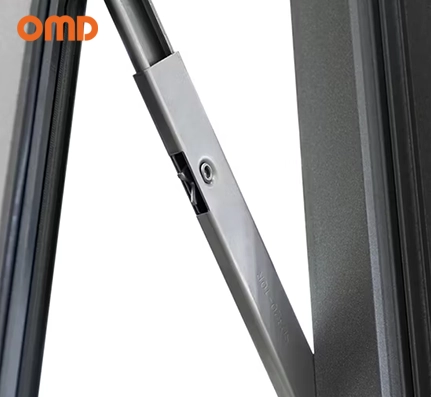

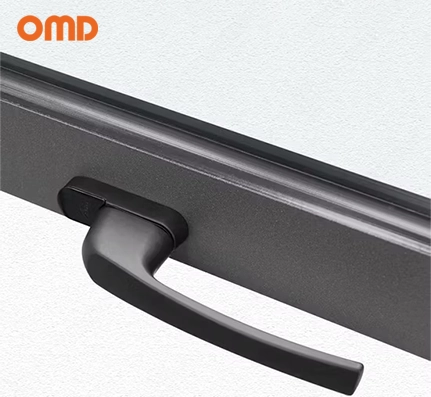

Hardwares&Accessories Options

awning-window-hareware-2-1

  • Shenzhen Haobo
  • American Shimek Hardware
  • Italian Reguiti Hardware
  • German Grid House Hardware
  • German SIEGENIA Hardware
  • German Stanford Hardware
  • German Noto Hardware
  • Denmark Stamford Hardware
  • Belgium Sobinco Hardware
  • OMD always choose seriously hardwares&accessories for customers with 10 years warranty
blank

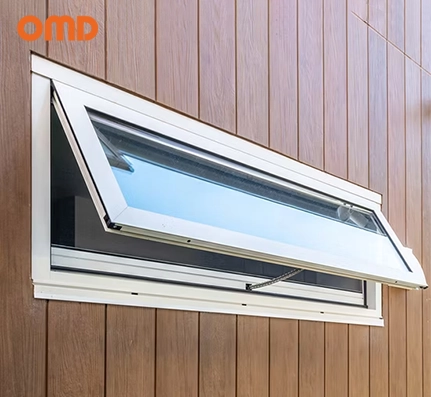

AWNING WINDOW

Aluminium awning windows are ideal across all rooms in your home, such as your bathroom, laundry or kitchen. Featuring our unique inline reveal as standard, our awning windows provide excellent energy efficiency when paired with an energy efficient glazing solution.

Add extra ventilation to your space with aluminium awning windows. Awning windows are often paired with vertically proportioned casement windows or picture windows but you can also use them alone.

OMD aluminum windows are weather resistant meaning they are low-maintenance and not susceptible to rust or corrosion. If views are important you will be happy to know that the strength of aluminum frames allows you to get thin profiles and lots of glass.

We are capable of customizing any kind of aluiminium awning windows according to customer’s demand.

Customize Your Awning Windows

Looking to add both style and functionality to your home? Customize your awning windows today for the perfect blend of ventilation and natural light. Our awning windows are designed to open outward, offering enhanced airflow while keeping rain out — ideal for any weather. With a wide range of colors, materials, and finishes, you can create a look that perfectly complements your home’s aesthetic. Whether you’re renovating or building a new space, our custom options allow you to tailor the design to your exact needs. Elevate your home’s curb appeal and comfort with high-quality, durable awning windows. Ready to start? Get in touch with us today for your personalized quote!


Get A Free Sample Now
blank
Q1: What locations are your aluminum doors and windows suitable for?

A:Our aluminum doors and windows are suitable for residential, commercial spaces, patios, balconies, large openings, and more, combining practicality and aesthetics.

A:Yes, we provide customization services for size, color, style, and functionality to meet your specific needs.

A:We specialize in the research and production of aluminum doors and windows, with over 100 technical patents. Our products have the following advantages:

  • Durability: Aluminum alloy materials offer excellent corrosion resistance and wind pressure performance.
  • Energy-efficient: We use highly efficient thermal insulation and soundproofing materials to enhance indoor comfort and save energy.
  • High safety: Our doors and windows are designed with safety in mind, using high-quality glass and hardware accessories.
  • Aesthetic variety: We offer various styles and customization options to meet the needs of different customers.

A:We offer a 10-year warranty on all products, along with lifetime online support. We also provide on-site installation services to ensure proper installation and long-term use.

A:Absolutely! We comply with:

  • EU: CE, EN 14351-1

  • US: AAMA, ASTM E1886

  • Australia: AS2047

  • Others: Custom certifications available upon request

A:◆ Standard orders: 15-20 working days after deposit
     ◆ Full customization: 25-30 working days (with real-time production updates)
     ◆ Large projects: Dedicated production line for 10,000+ units/monthA:

A:✓ Material: 6063-T5 aluminum, imported hardware (Hoppe, GU, etc.)
    ✓ Testing: Air/water/wind pressure tests, on-site QC inspections
    ✓ Warranty: 10 years on profiles, 5 years on hardware
